Product Description

M2046 Inline Globe Needle Valve

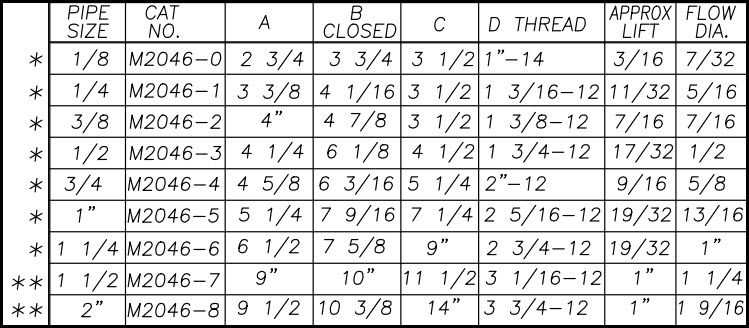

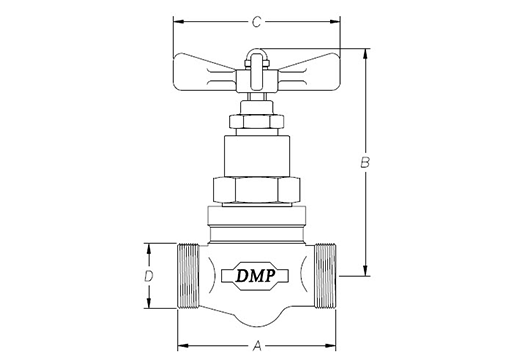

Dimensions subject to change without notice.

• *Valve design consistant with requirements of MIL-V-24109.
• **Center line of valve stem is angled approximately 12′ from the perpendicular to the piping.
• Offset and Angle body configurations available.

Valve Construction:

• Body – Bonnet : High Tensile Bronze
• Stem: 316 Stainless Steel
• Seat: NICU (Monel)
• Disc: Nylon
• Handle: Aluminum
• *Other materials are available to meet your needs

Cartridge:

For Cartridge information, see Needle Cartridge M246.

Union End Fittings:

This valve is available with connection fittings that can be purchased with the valve or separately to meet your system requirements.

“GET THE CONNECTION”

Available Accessories / Components:

Handle Lock
Removable Handle
Limit Switch
Panel Mount
Vent Above/Below Seat
Repair Seals Kit

Click below to view or download Product Data:

M2046 Inline Globe Needle Valve
