Product Description

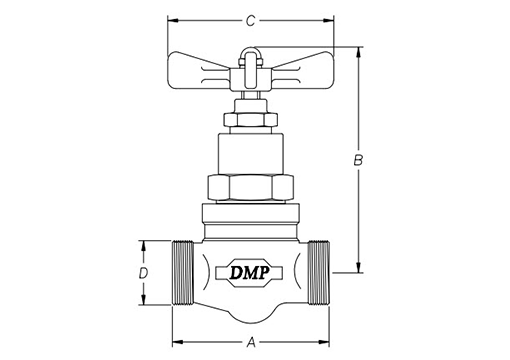

M2036 Inline Globe Shutoff Valve

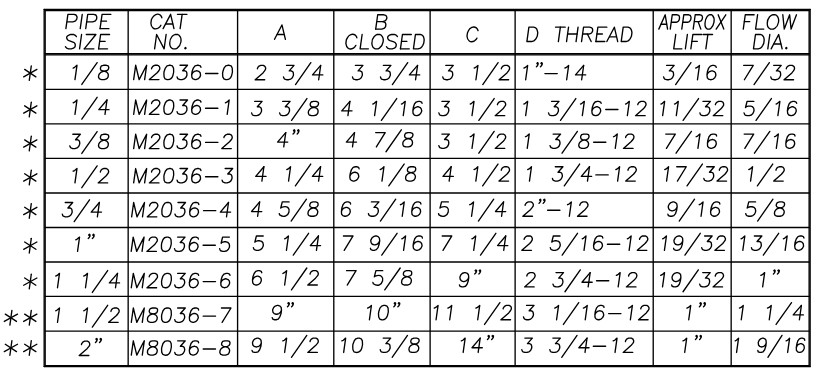

Dimensions subject to change without notice.

• *Qualified to QPL-24109 I/A/W MIL-V-24109.
• **Center line of valve stem is angled approximately 12″ from the perpendicular to the piping.
• Offset and Angle body configurations available.
• Head loss data for liquid and air are available for this valve. For details, see Head Loss Data.

Valve Construction:

• Body – Bonnet : High Tensile Bronze
• Stem: 316 Stainless Steel
• Seat: NICU (Monel)
• Disc: Nylon
• Handle: Aluminum
• *Other materials are available to meet your needs

Cartridge:

For Cartridge information, see Stop Cartridge M236.

Union End Fittings:

This valve is available with connection fittings that can be purchased with the valve or separately to meet your system requirements.

“GET THE CONNECTION”

Available Accessories / Components:

Handle Lock
Removable Handle
Limit Switch
Panel Mount
Vent Above/Below Seat
Repair Seals Kit

Click below to view or download Product Data:

M2036 Inline Globe Shutoff Valve
